WIDELY USE:Screw holes 2230/2242/2260/2280 available to fix M.2 SSD cards,Please connect the motherboard by SATA cable if insert M.2 SATA SSD ( B key slot),No additional power required
OS REQUIRES:Supports any OS, like Windows, Mac and Linux, etc,just make sure the operating be compatible with hard disk

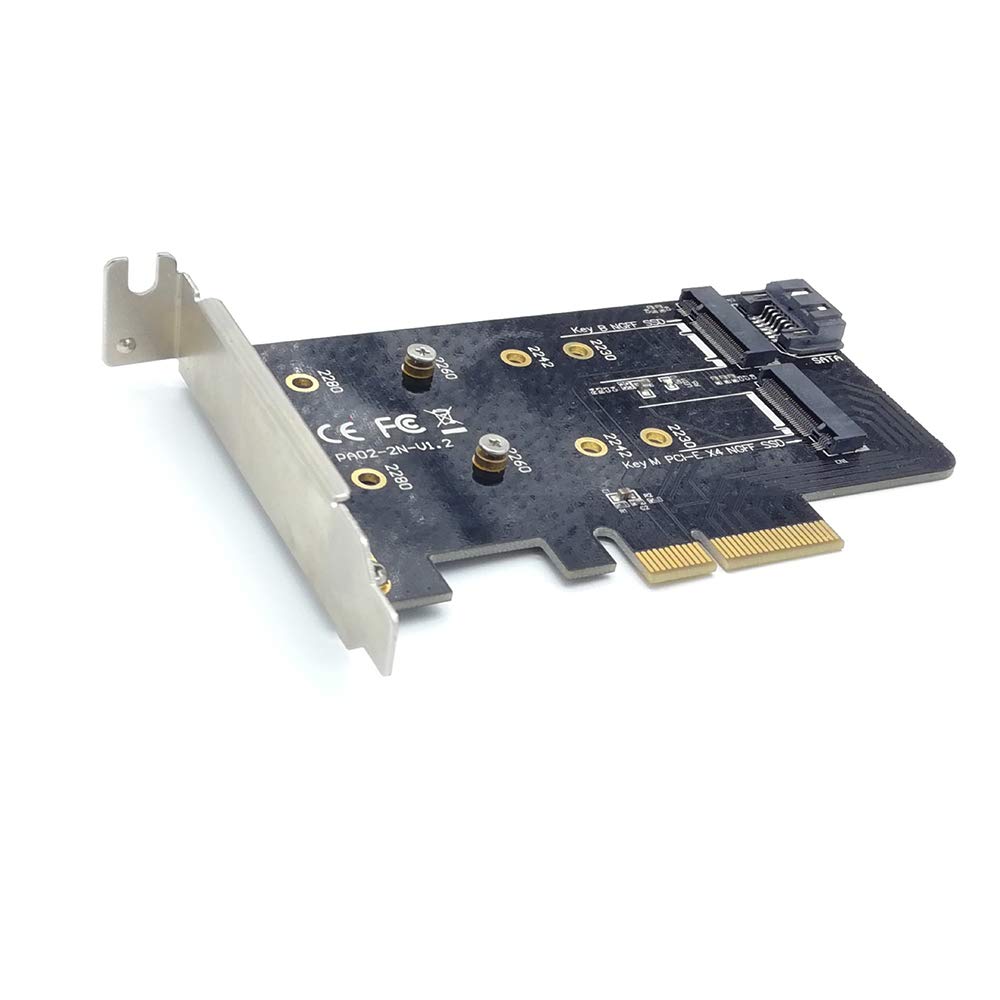

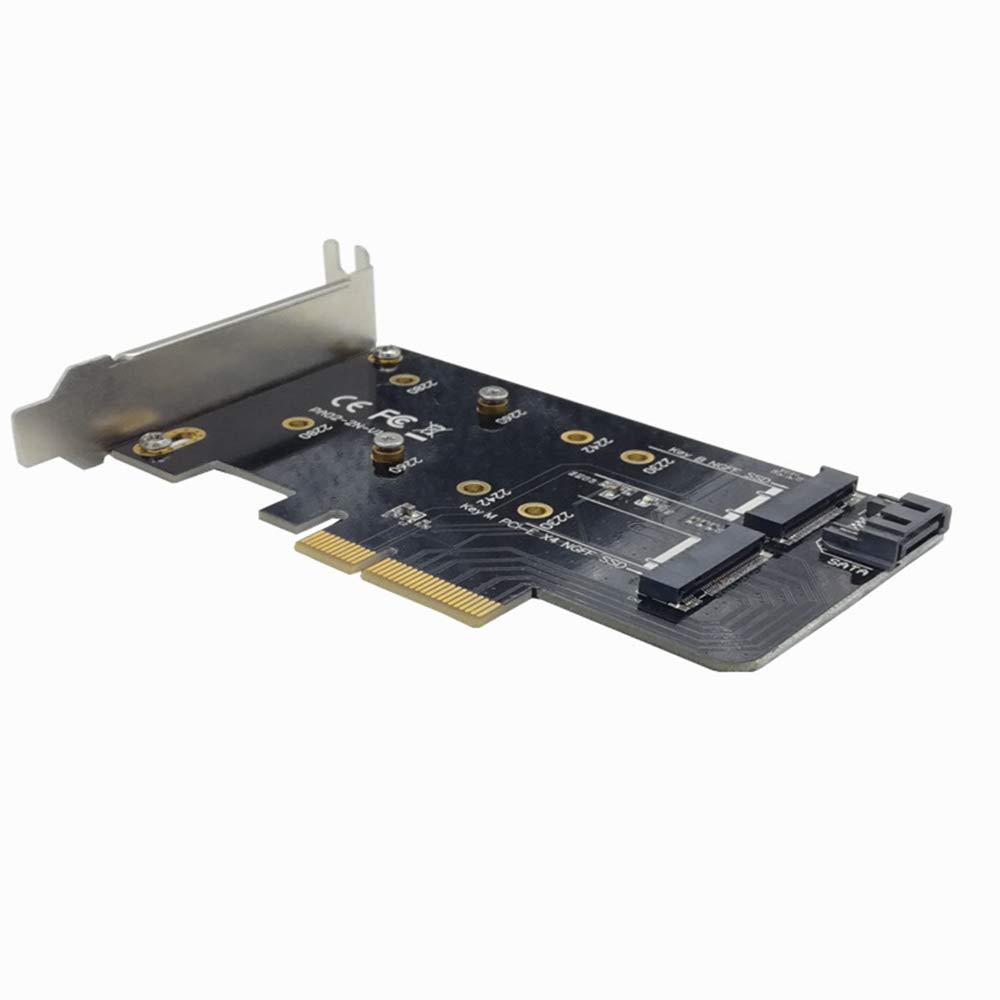

DUAL Port(SLOT):M.2 B Key(ngff)/M.2 M Key(nvme) SSD to PCI-E 4X Adapter Card
Dual M.2 PCI Express Adapter, M2 SSD NVME (M Key) or SATA (B Key) 2280 2260 2242 2230 to PCI-e x4 Expansion Card W/ Low…
Amazon.com Price: ৳ 11.78 (as of 10/04/2023 05:45 PST- Details)
Description
SPECIFICATIONS:
1.Connects one B key & one M key M.2 SSD on the comparable time to PCI-E 4X motherboard
2.Compliant with SATA 3.0 specification for B key
3.Compliant with PCI-E 4X 3.0 specification for M key
4.M.2 SSD interface requirements:
(1).Socket 2(B key 2 LANE):there are SATA(comparable to THNSNH128G8NT/ THNSNH128GDNT/MZNTD256HAGM fashions of SSD) and PCI-E x2(comparable to PX-AG128M6E/PX-AG256M6E/PX-AG512M6E/SD6PP4M fashions of SSD) other switch mode
(2).Socket three(M key,4 LANE):PCI-E x4(comparable to MZHPU128HCGM MZHPU256HCGL and MZHPU512HCGL fashions of SSD) switch mode
5.Bundle content material:
1*Twin M.2 slots adapter Card
1*Prime profile bracket(L:12cm)
1*Low Prime profile bracket(L:8cm)
1*7pin SATA Cable
2*Screw
WIDELY USE:Screw holes 2230/2242/2260/2280 to be had to mend M.2 SSD playing cards,Please attach the motherboard through SATA cable if insert M.2 SATA SSD ( B key slot),No further energy required
OS REQUIRES:Helps any OS, like Home windows, Mac and Linux, and so on,simply be sure that the working be appropriate with exhausting disk
DUAL Port(SLOT):M.2 B Key(ngff)/M.2 M Key(nvme) SSD to PCI-E 4X Adapter Card
PACKAGE CONTENT: 1*Twin M.2 slots adapter Card + 1*Prime profile bracket(L:12cm) +1*Low Prime profile bracket(L:8cm) +1*7pin SATA Cable+ 2*Screw
FRIENDLY NOTE: 1.If there’s a exclamation mark after set up adapter, please ask SSD provider to provide the NVME Driving force as a result of M.2 PCIE x4(NVME)SSD required NVME Driving force,most effective WIN8.1 or upper machine give a boost to learn disk.It should to verify the BIOS of motherboard give a boost to PCIE get started up If the need use M.2(NVME) SSD as a machine disk. XP,WIN7/eight don’t has NVMe Driving force,so the M.2(NVME) SSD cannot be used as machine disk 2.Please understand that for M key SSD there should be a 2.0 or upper pcie 4X socket
